Complete Post consumer PET Bottle Washing Line High Efficiency
We are pleased to introduce our latest innovation in plastic
recycling technology - PR-PULIER's newly designed all-PET bottle
cleaning line. With over 18 years of industry experience, PR-PULIER
is committed to providing high-quality and technologically advanced
solutions for plastic recycling.
Our new PET bottle cleaning line is designed to clean and process
PET bottles efficiently and effectively, ensuring they can be
recycled and reused in a sustainable way. The line includes a range
of basic components such as bale openers, trommel screens, label
removers, magnetic sorters, floating tanks, friction and thermal
washers, dehydrators, label separators and optical sorters. Each
component is engineered to provide optimal performance and
reliability, resulting in a streamlined and comprehensive washing
process.
At PR-PULIER, we understand the importance of investing in
cutting-edge technology to address the challenges of plastic waste
management. Our PET bottle cleaning line demonstrates our
commitment to innovation and sustainability. By combining advanced
features and high-quality materials, we have created a solution
that meets the needs of modern plastic recycling operations.
In addition to PET bottle cleaning lines, PR-PULIER also offers a
wide range of plastic recycling solutions, including plastic
pelletizing lines and ancillary products. Our comprehensive product
portfolio meets the diverse needs of our customers, providing them
with the tools and equipment they need to achieve their recycling
goals.
We are proud to be at the forefront of the plastics recycling
industry and our new PET bottle washing line is testament to our
commitment to excellence. With PR-PULIER, customers can be
confident they are investing in a reliable, efficient and
sustainable plastic recycling solution.
Experience the PR-PULIER difference and learn how our new PET
bottle washing line can take your plastic recycling operations to
new heights.
PET bottles washing line we accumulated much experience from the
actual project for our customers from all over the world.
In India and homeland we have designed the complete lines for
customers recycling the PET bottles. According to customers
requirement, we can add or remove some specific machines to reach
the target.
1000 kg/h PET bottles washing line layout
1. Bale opener
2. Belt conveyer
3. Rotary screen
4. Belt conveyer
5. Label remover
6. Pre-washer
7. Intelligent optical sorting system
8. Manual sorting system
9. Crusher
10. Hot washer
11. Screw loader
12. Floating washer
13. High speed friction washer
14. Dewatering
15. Round floating washer
16. Floating washer
17. Dewatering
18. Pipe drying
19. Bottle label separator
20. Compacting packing

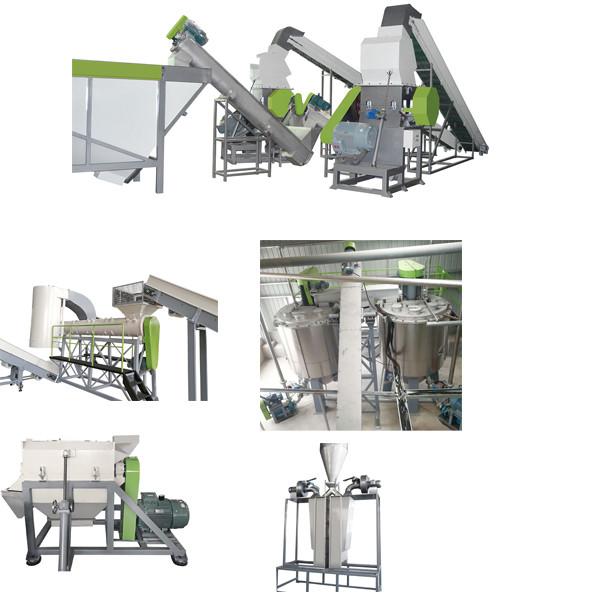

Features equipment:
1. Bale opener
Newly design PET bottles bales opener. Four shaft effectively open
the bales and convey the separated bottles into the belt.(Picture)
2.Label remover
Effectively remove the labels on the pressed bottles 99% and labels
on the round bottles 90%. (Picture)
3.Eddy current separator
To separate the copper and aluminum etc non iron metals.
4.Magnetic sorter
To separate the irons metal in the PET botttles.
5.Color sorter and polymer sorter
We could offer the high efficient and qualified color sorter to
separate the non pet bottles.
It adopt the AI sorter, could separate according to the shape, size
and color etc. Also it can separate the highly similar mixed PET PP
bottle by the polymer sorter.
6.Prewasher
With adding the water to remove the outside imputy and dust.
7.Hot washing machine
It will add the steam and make the water to 70-80Celsuis to wash
the flakes. You could add some alkali to make the wash intensively.
With shaft rotation in the center to frictionly wash, it will
effectively remove the labels and glues stick on the flakes.
8.High speed friction washing
The high speed friction washing used to put after the hot washing machine. After the hot wash, the remains glues and sticks are soft and easy to remove. With the 1000rpm friction washing and baldes inside of the machine, it can be easily separated.
9.Floating tank
After the high speed washing, the flakes could go the floating
tank. With Thumb wheel rotation, the materials will go forward and
floating well.
10.Dewatering machine
It can effectively remove water and sand to reach moisture 1%. The rotation speed is high about 2000 rpm.
11.Bottle flakes labels separator
Effectively remove the crushed labels and dust mixed in the bottles
flakes.
12.Color sorter for the flakes
At the end of the line we could add the color sorter to separate the colors.
The washing line consumption:
Items 品名 | Average consumption 平均消耗 |
Electricity 电力(kwh) | 170 |
Steam 蒸汽(kg) | 510 |
Washing detergent 清洗剂(kg/ton) | 5 |
Water 水 | 2 |
PET washing line quality and specification
Capacity(kg/h) | Power installed(kW) | Required space(M2) | Labour | Steam requirement(kg/h) | Water consumption(M3/h) |
1000 | 490 | 730 | 5 | 510 | 2.1 |
2000 | 680 | 880 | 6 | 790 | 2.9 |
3000 | 890 | 1020 | 7 | 1010 | 3.8 |
PET flakes quality reference table
Moisture content | <0.9-1% | |
PVC | <49ppmm | |
Glue | <10.5ppm | |
PP/PE | <19ppm | |
Metal | <18ppm | |
Label | <19ppm | |
Variegated tablets | <28ppm | |
PH | Neutral | |
Total impurity | <100ppm | |
Flakes size | 12,14mm |
![]() |
