Zigzag Paper Label Remover

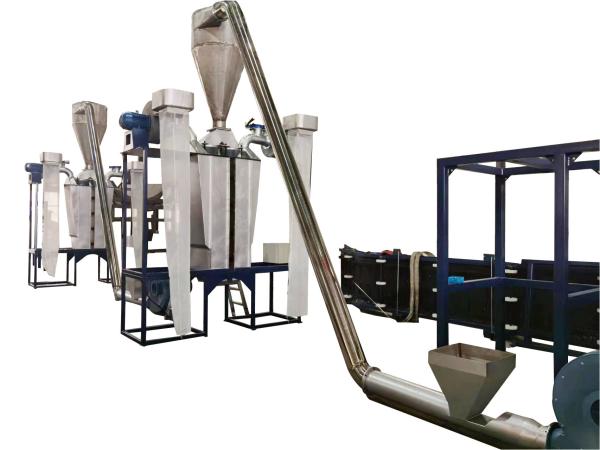

PET bottle washing line /PET bottle recycling plant/PET recycling process

PR Recycling Machine (Label Separating, Crushing, Washing, Drying and Granulating)
HDPE/PP/PET Bottle Recycle Washing Machines are special designed for PET bottle, HDPE milk bottle, PP /PE Bottle, HDPE blue jar, oil bottle, Jerry Can, Waste Plastic Container, Plastic Bucket, Plastic Hollow Bottle with sand, stone, powder, oil and other sticky waste.
Capacity range: 500kg/h to 6500kg/h

PR Recycling Machine Information
Plastic bottle label separating, cutting, washing, recycling machine with high output and excellent clean ability
Whole plastic recycling line is used to crush, wash, dewater and dry the PP/PE flake or rigid material
Simple structure, easy operation, large capacity, energy-saving, safety
Automatic controlling, compacted structure, excellent production ability, perfect clean ability

Final PET flake quality reference

Output PET flake quality reference

While PVC labels can directly decompose PET during subsequent thermal processing,and the IV viscosity of PET bottle flakes will be reduced to the point where it cannot be recycled.

The material contact parts of the separation and cleaning equipment for PET bottle flakes,labels and bottle caps are made of stainless steel,which will not rust or contaminate the separated materials.In the sealed separation box,the bottle flakes,labels and bottle caps fall at the same time.

At the same time,a suction fan is used to extract air from the side to form a negative pressure,and the amount of negative pressure is adjusted through the air volume regulating valve,so that the heavier botte flakes per unit volume are It just falls into the unloading port,and the lighter weight labels and bottle caps can be extracted and entered into the label and bottle cap collection bag, thereby achieving the purpose of separating labels from bottle flakes and bottle caps.

The interface between the cyclone blanking tank and the separation boxisdesigned like a"three-way"structure.Label and bottle cap collection bags use cloth bags of certain specifications,which have dust removal effects

With the polyvinyl chloride(PVC),polyethylene(PE),polypropylene(referred to as PP)or paper material affixed to the bottle body,and PE cover,to ensure the purity and quality is quite important during bottle recycling process.

PET bottle flakes must be separated from the label and bottle cap.
During floating washing process,some labels and bottles with a specific gravity smaller than water are The cap floats on the water,while the bottle flakes with a specific gravity greater than water will sink into the water,so that the PET bottle flakes,labels and bottle caps can be separated from each other.

Company Introduction

Chengdu PuRui Polymer Engineering Co. Ltd is one of the leading manufacturers of plastic recycling machines, extruder, plastic granulator and related auxiliary equipment in China.
Our plastic pelletizing system's unique advantages are screw design, high output, good degassing and good filter effect.
Our plastic washing line such as crusher with bearable resistance and sharp cutter, washing units, separating or sorting machine, drying system, and packaging system are of sound quality.

Chengdu PURUI Polymer Engineering Co., Ltd., in collaboration with PULIER Machinery Co., Ltd., stands at the forefront of plastic recycling machinery manufacturing in China. With a commitment to innovation, quality, and sustainability, we provide a comprehensive range of high-performance recycling solutions that cater to the diverse needs of the plastic processing industry.

Our Products

1. Single Screw Extruder Machines

   • High Efficiency: Our single screw extruder machines are designed for optimal performance, ensuring efficient melting and homogenization of various plastic materials.
   • Versatility: Suitable for a wide range of applications, including extrusion, blow molding, and injection molding processes.

2. Twin Screw Extruder Machines

   • Advanced Compounding: Our twin screw extruder machines offer superior shear and mixing capabilities, making them ideal for complex compounding tasks.
   • Customization: These machines can be customized with different screw configurations and barrel designs to meet specific processing requirements.

3. Plastic Washing Machines

   • Comprehensive Cleaning: Designed to effectively clean and process different types of plastic waste, our washing machines ensure high-quality output suitable for recycling.
   • Water Conservation: Equipped with advanced water recycling systems, our machines minimize water usage, promoting environmental sustainability.

4. Plastic Pelletizing Machines

   • Consistent Quality: Our pelletizing machines produce uniform and high-quality plastic pellets, essential for various manufacturing processes.
   • Energy Efficient: Engineered to be energy-efficient, our machines reduce operational costs while maintaining high throughput.

Our Strengths

1. Innovation and Technology

   • Cutting-Edge Solutions: At Chengdu PURUI, we invest in the latest technologies and innovations to develop state-of-the-art recycling machinery.
   • Research and Development: Our dedicated R&D team continuously works on improving and refining our products to meet the evolving demands of the industry.

2. Quality Assurance

   • Strict Quality Control: We adhere to stringent quality control measures at every stage of production to ensure that our machines meet the highest standards of performance and reliability.
   • Durable Construction: Built with premium materials and components, our machines are designed for long-term durability and low maintenance.

3. Customer-Centric Approach

   • Tailored Solutions: We offer customized solutions to meet the unique needs of our clients, ensuring maximum efficiency and productivity.
   • Comprehensive Support: From installation and training to maintenance and technical support, we provide end-to-end services to our customers.

4. Sustainability

   • Environmental Responsibility: Our products are designed to promote recycling and reduce plastic waste, contributing to a more sustainable future.
   • Energy Efficiency: We focus on developing energy-efficient machines that minimize environmental impact and operational costs.

Industries We Serve

• Plastic Manufacturing: Providing high-quality recycling machinery for plastic manufacturing companies to process and recycle plastic waste efficiently.
• Chemical Processing: Offering advanced compounding machines for the chemical industry, enabling the production of specialty polymers and compounds.
• Waste Management: Supporting waste management companies with effective plastic washing and pelletizing solutions to enhance recycling processes.

Conclusion

Chengdu PURUI Polymer Engineering Co., Ltd., in partnership with PULIER Machinery Co., Ltd., is dedicated to advancing the field of plastic recycling through innovative and high-quality machinery. Our comprehensive range of products, combined with our commitment to customer satisfaction and environmental sustainability, positions us as the leading manufacturer of plastic recycling machines in China. By choosing our solutions, businesses can achieve higher efficiency, consistent quality, and contribute to a greener planet.
