Complete PP PE plastic films washing line

This whole production line is used to crush, wash, dewater and dry PP/PE film, PP woven bags, either source from post-consumer or post-industrial. For example PE waste agriculture films, waste packing films etc, PP woven bags for packing etc.

Our washing line features in the simple structure, easy operation, fully automatic, good performance, high capacity and low consumption etc. We believe our unique design will save much energy and labour for you and make high efficiency.

Generally after the raw materials washed well and dry well, the PP PE scraps will get into the pelletizing line. The pelletizing line will process and pelletize the raw material to make it the nice qualified plastic pellets/resins for the next production. Either the material will be sold to the pellets market or to make the new films or bags for goods.

Models

Layout:

1. Belt conveyer/Chain charger

2. Preshredder

3. Trommel

4. Manual sorting

5. Sand remover

6. Magnetic sorter

7. Crusher

8. Horizontal friction washing

9. High speed friction washing

10. Floating tank

11. High speed friction washing

12. Floating washer

13. Screw loader

14. Plastic squeezer dryer

The main washing machines features:

A.Preshredder

Smart design and strong force to preshredd the bulk PE films and loose PP ton bags and woven bags to the size of 100-150mm. It will reduce the down stream working force.

B. Trommel

With the hole diameter 25mm it could remove the tones and sand mixed in the PP PE films and PP woven bags scraps. And in the end it will reduce the sand in the floating tank and save water.

C.Sand remover

Special design to reduce the sand in the raw materials. The rotation shaft and blades will remove the sand and bottom conveyer will discharge the sand out.

D.Special design crusher

Qualified and special designed crusher with special structure shaft and blades angle will process the PP PE films and bags and PP woven bags in great situation.

E.Horizontal Friction Washing

It is designed to effectively remove the sand and label stick on the films. Will add water to wash.

F.High speed friction washing 1

It is designed to remove the sand and the labels stick on the films. Will add water to wash. The performance is great.

Old type

New type

G.Floating tank

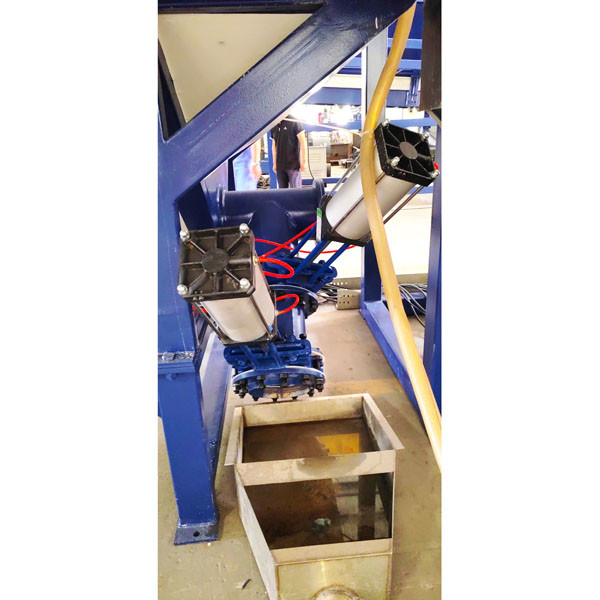

It will float the raw material. And according to raw material situation, we may add the pneumatic valve to discharge the waste and sand. The design of the stainless steel chain to discharge waste to save the water.

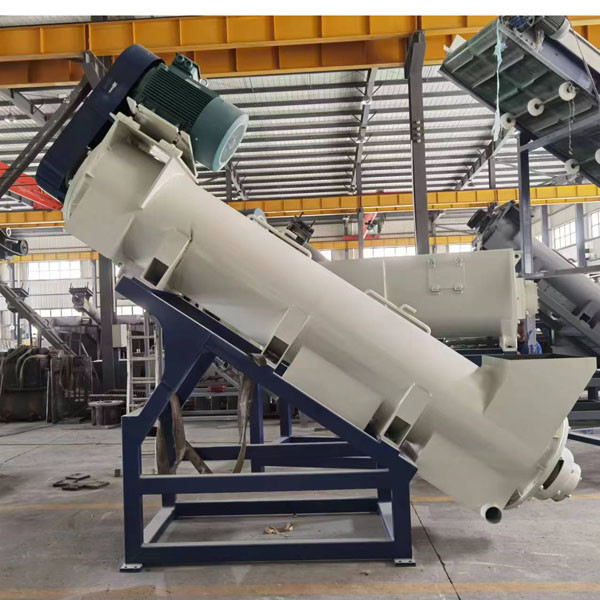

H. Plastic squeezer dryer

It will be used in the raw material drying in the washing system. Effectively remove the water and keep the moisture within 5%. Will largely improve the quality of the next plastic pelletizing processing.

Chengdu PURUI Polymer Engineering Co., Ltd., in collaboration with PULIER Machinery Co., Ltd., stands at the forefront of plastic recycling machinery manufacturing in China. With a commitment to innovation, quality, and sustainability, we provide a comprehensive range of high-performance recycling solutions that cater to the diverse needs of the plastic processing industry.

Our Products

1. Single Screw Extruder Machines

   • High Efficiency: Our single screw extruder machines are designed for optimal performance, ensuring efficient melting and homogenization of various plastic materials.
   • Versatility: Suitable for a wide range of applications, including extrusion, blow molding, and injection molding processes.

2. Twin Screw Extruder Machines

   • Advanced Compounding: Our twin screw extruder machines offer superior shear and mixing capabilities, making them ideal for complex compounding tasks.
   • Customization: These machines can be customized with different screw configurations and barrel designs to meet specific processing requirements.

3. Plastic Washing Machines

   • Comprehensive Cleaning: Designed to effectively clean and process different types of plastic waste, our washing machines ensure high-quality output suitable for recycling.
   • Water Conservation: Equipped with advanced water recycling systems, our machines minimize water usage, promoting environmental sustainability.

4. Plastic Pelletizing Machines

   • Consistent Quality: Our pelletizing machines produce uniform and high-quality plastic pellets, essential for various manufacturing processes.
   • Energy Efficient: Engineered to be energy-efficient, our machines reduce operational costs while maintaining high throughput.

Our Strengths

1. Innovation and Technology

   • Cutting-Edge Solutions: At Chengdu PURUI, we invest in the latest technologies and innovations to develop state-of-the-art recycling machinery.
   • Research and Development: Our dedicated R&D team continuously works on improving and refining our products to meet the evolving demands of the industry.

2. Quality Assurance

   • Strict Quality Control: We adhere to stringent quality control measures at every stage of production to ensure that our machines meet the highest standards of performance and reliability.
   • Durable Construction: Built with premium materials and components, our machines are designed for long-term durability and low maintenance.

3. Customer-Centric Approach

   • Tailored Solutions: We offer customized solutions to meet the unique needs of our clients, ensuring maximum efficiency and productivity.
   • Comprehensive Support: From installation and training to maintenance and technical support, we provide end-to-end services to our customers.

4. Sustainability

   • Environmental Responsibility: Our products are designed to promote recycling and reduce plastic waste, contributing to a more sustainable future.
   • Energy Efficiency: We focus on developing energy-efficient machines that minimize environmental impact and operational costs.

Industries We Serve

• Plastic Manufacturing: Providing high-quality recycling machinery for plastic manufacturing companies to process and recycle plastic waste efficiently.
• Chemical Processing: Offering advanced compounding machines for the chemical industry, enabling the production of specialty polymers and compounds.
• Waste Management: Supporting waste management companies with effective plastic washing and pelletizing solutions to enhance recycling processes.

Conclusion

Chengdu PURUI Polymer Engineering Co., Ltd., in partnership with PULIER Machinery Co., Ltd., is dedicated to advancing the field of plastic recycling through innovative and high-quality machinery. Our comprehensive range of products, combined with our commitment to customer satisfaction and environmental sustainability, positions us as the leading manufacturer of plastic recycling machines in China. By choosing our solutions, businesses can achieve higher efficiency, consistent quality, and contribute to a greener planet.
