Fully Automatic Plastic Washing Recycling Machine for PP PE Films and Woven Bags

This whole production line is used to shred, crush, wash, dewater and dry PP/PE film, PP woven bags, either source from post-consumer or post-industrial. For example PE waste agriculture films, waste packing films etc, PP woven bags for packing etc.

Our washing line features in the simple structure, easy operation, fully automatic, good performance, high capacity and low consumption etc. We believe our unique design will save much energy and labour for you and make high efficiency.

What sets our PE Film Cleaning Line apart is its user-friendly interface and automated controls, allowing operators to monitor and adjust settings with ease. Additionally, the line is designed with energy efficiency in mind, reducing operational costs while minimizing environmental impact.

Usually, after the raw materials have been fully cleaned and dried, PP and PE waste will enter the pelletizing production line. The production line will process and pelletize raw materials to produce high-quality plastic pellets/resin for subsequent production. The materials can be sold into the pellet market or used to make new films or packaging bags.

Models

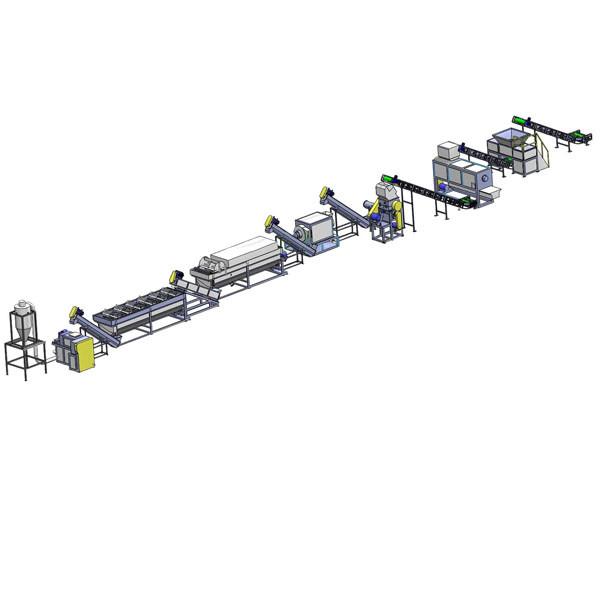

Layout:

1. Belt conveyer/Chain charger

2. Preshredder

3. Trommel

4. Manual sorting

5. Sand remover

6. Magnetic sorter

7. Crusher

8. Horizontal friction washing

9. High speed friction washing

10. Floating tank

11. High speed friction washing

12. Floating washer

13. Screw loader

14. Plastic squeezer dryer

The main washing machines features:

A.Preshredder

Intelligent design and powerful pre-shredding force can cut bulk PE film, loose PP ton bags and woven bags to size of 100-150mm. This will reduce the labor intensity of subsequent work.

B. Trommel

The design with a hole diameter of 25mm can effectively remove impurities and sand mixed in PP and PE films and PP woven bag waste. Ultimately, this will reduce the sand content in the flotation cells and save water.

C.Sand remover

Special design to reduce the sand in the raw materials. The rotation shaft and blades will remove the sand and bottom conveyer will discharge the sand out.

D.Special design crusher

The specially designed high-quality crusher, equipped with a uniquely structured shaft and blade angle, can efficiently process PP and PE films, bags, and PP woven bags in good condition.

E.Horizontal Friction Washing

It is designed to effectively remove sand and adhered labels from the film and can be cleaned by adding water.

F.High speed friction washing 1

It is designed to remove sand and adhered labels from the film and is cleaned by adding water. Its performance is excellent.

Old type

New type

G.Floating tank

It will make the raw material float. Depending on the condition of the raw materials, we can add pneumatic valves to discharge waste and sand. The design using stainless steel chains can effectively discharge waste, thus saving water.

H. Plastic squeezer dryer

It will be used for drying raw materials in the washing system, which can effectively remove moisture and control the humidity within 5%. This will greatly improve the quality of subsequent plastic granulation processing.

Chengdu PURUI Polymer Engineering Co., Ltd., in collaboration with PULIER Machinery Co., Ltd., stands at the forefront of plastic recycling machinery manufacturing in China. With a commitment to innovation, quality, and sustainability, we provide a comprehensive range of high-performance recycling solutions that cater to the diverse needs of the plastic processing industry.

Our Products

1. Single Screw Extruder Machines

   • High Efficiency: Our single screw extruder machines are designed for optimal performance, ensuring efficient melting and homogenization of various plastic materials.
   • Versatility: Suitable for a wide range of applications, including extrusion, blow molding, and injection molding processes.

2. Twin Screw Extruder Machines

   • Advanced Compounding: Our twin screw extruder machines offer superior shear and mixing capabilities, making them ideal for complex compounding tasks.
   • Customization: These machines can be customized with different screw configurations and barrel designs to meet specific processing requirements.

3. Plastic Washing Machines

   • Comprehensive Cleaning: Designed to effectively clean and process different types of plastic waste, our washing machines ensure high-quality output suitable for recycling.
   • Water Conservation: Equipped with advanced water recycling systems, our machines minimize water usage, promoting environmental sustainability.

4. Plastic Pelletizing Machines

   • Consistent Quality: Our pelletizing machines produce uniform and high-quality plastic pellets, essential for various manufacturing processes.
   • Energy Efficient: Engineered to be energy-efficient, our machines reduce operational costs while maintaining high throughput.

Our Strengths

1. Innovation and Technology

   • Cutting-Edge Solutions: At Chengdu PURUI, we invest in the latest technologies and innovations to develop state-of-the-art recycling machinery.
   • Research and Development: Our dedicated R&D team continuously works on improving and refining our products to meet the evolving demands of the industry.

2. Quality Assurance

   • Strict Quality Control: We adhere to stringent quality control measures at every stage of production to ensure that our machines meet the highest standards of performance and reliability.
   • Durable Construction: Built with premium materials and components, our machines are designed for long-term durability and low maintenance.

3. Customer-Centric Approach

   • Tailored Solutions: We offer customized solutions to meet the unique needs of our clients, ensuring maximum efficiency and productivity.
   • Comprehensive Support: From installation and training to maintenance and technical support, we provide end-to-end services to our customers.

4. Sustainability

   • Environmental Responsibility: Our products are designed to promote recycling and reduce plastic waste, contributing to a more sustainable future.
   • Energy Efficiency: We focus on developing energy-efficient machines that minimize environmental impact and operational costs.

Industries We Serve

• Plastic Manufacturing: Providing high-quality recycling machinery for plastic manufacturing companies to process and recycle plastic waste efficiently.
• Chemical Processing: Offering advanced compounding machines for the chemical industry, enabling the production of specialty polymers and compounds.
• Waste Management: Supporting waste management companies with effective plastic washing and pelletizing solutions to enhance recycling processes.

Conclusion

Chengdu PURUI Polymer Engineering Co., Ltd., in partnership with PULIER Machinery Co., Ltd., is dedicated to advancing the field of plastic recycling through innovative and high-quality machinery. Our comprehensive range of products, combined with our commitment to customer satisfaction and environmental sustainability, positions us as the leading manufacturer of plastic recycling machines in China. By choosing our solutions, businesses can achieve higher efficiency, consistent quality, and contribute to a greener planet.
