HDPE PP Milk Bottle Recycling Washing Machines
PR Recycling Machine (Label Separating, Crushing, Washing, Drying and Granulating)
Bottle Recycle Washing Machines used for washing and recycling HDPE blue jar and pipes, PP basket, container, post-industrial
bucket, milk bottle, chemical bottle, garbage container, plastic
car bumper,with sand, stone, powder, oil and other sticky waste.
Capacity range: 500kg/h to 6500kg/h
PR Recycling Machine Information
Plastic bottle label separating, cutting, washing, recycling machine with high output and excellent
clean ability
Whole plastic recycling line is used to crush, wash, dewater and
dry the PP/PE flake or rigid material
Simple structure, easy operation, large capacity, energy-saving,
safety
Automatic controlling, compacted structure, excellent production
ability, perfect clean ability
1-Iron board chain with Bale breaker
2-Incline belt conveyor
3-Roll trommel
4-Manual plate with magnetic separator
5-Belt conveyor (2 sets)
6-Plastic granulator(2 sets)
7-Spiral feeder (2 sets)
8-Low speed friction washer
9-floating tank with bottom discharge screw
10-spiral feeder
11-hot washer with water filtering system
12-high speed friction washer
13-spiral feeder
14-floating tank B
15-spiral feeder
16-spray washer
17-centrifugal dewatering system
18-label remover
19-round vibration system
20-up loader
21-optical sorter (color)
22-color collector
23-silo
24-control cabinet
Technical parameter of HDPE bottle washing line
| Capacity(kg/hr) | Power installed (kW) | Warehouse are( m2) | Manpower | Water supply (m3/h) |
| 500 | 116 | 1500 | 4 | 5 |
| 1000 | 200 | 1800 | 5 | 6 |
| 2000 | 406 | 2000 | 5 | 8 |
| 3000 | 500 | 2500 | 6 | 10 |
Machine Specification Pictures:

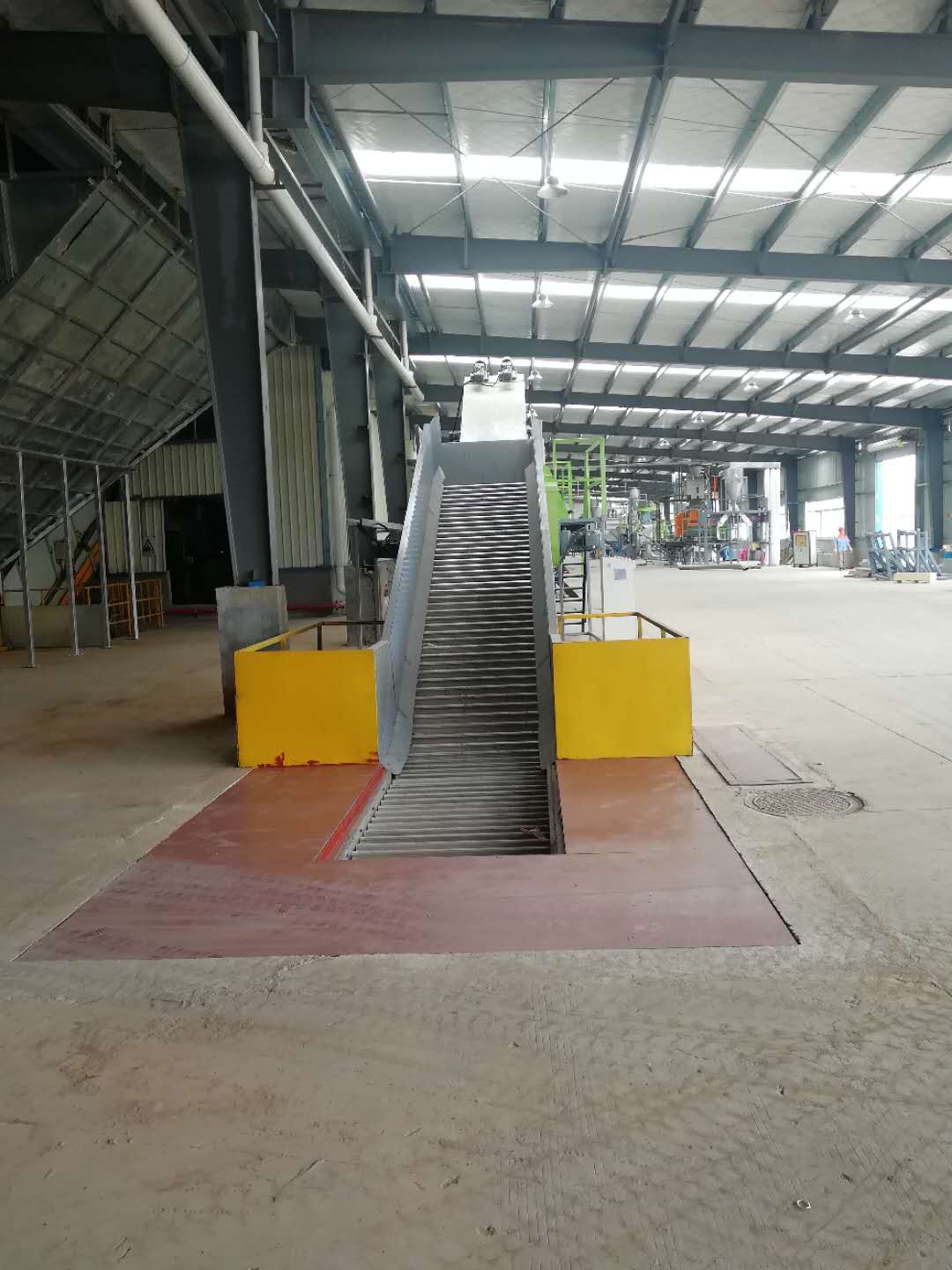

Iron Board Chain
Bale Opener
Trommel
Plastic Granulator or plastic crusher
Hot Washer
Flat type floating tank with side discharge feeder
