Intensive Washing and Water Saving Post-agriculture Film Recycling
Washing Machine
Application
LDPE/PP/PE film, PP woven bag, jumbo bag, cement bag,
post-agriculture film, greenhouse film, municipal film, garbage
film,post-consumer film or bag,etc
| Capacity(kg/h) | Power Installed(kw) | Required Area(m2) | Main Power | Compressed Air(m3/min) | Water Supply(m3/h) |
| 500 | 300 | 400 | 4 | 0.6 | 8-10 |
| 1000 | 500 | 450 | 6 | 0.6 | 10-15 |
| 2000 | 840 | 1300 | 6 | 0.6 | 15-20 |
Feature:
Applicable to film or bag with 40% sand
Whole system adopt water recycle for power saving
Space saving, easy operation, high efficiency, low power
consumption,safe and reliable
Technical Parameter
| Model | PE(QX-500) | PE(QX-800) | PE(QX-1000) | PE(QX-1500) | PE(QX-2000) |
| Capacity(kg/hr) | 500 | 800 | 1000 | 1500 | 2000 |
Machine Parts Introduction:

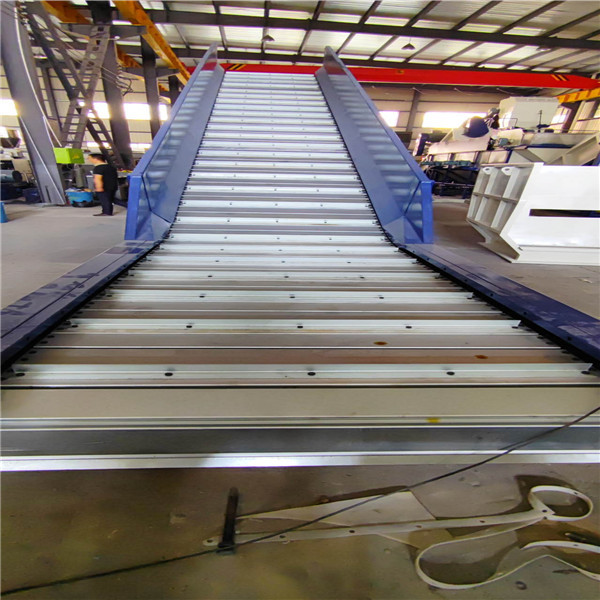

Iron board Chain Conveyor
To transfer whole bail into next part
weight bearing 500kg per bail
Transfering part also can be use PVC belt conveyor( to design
according to customer budget)

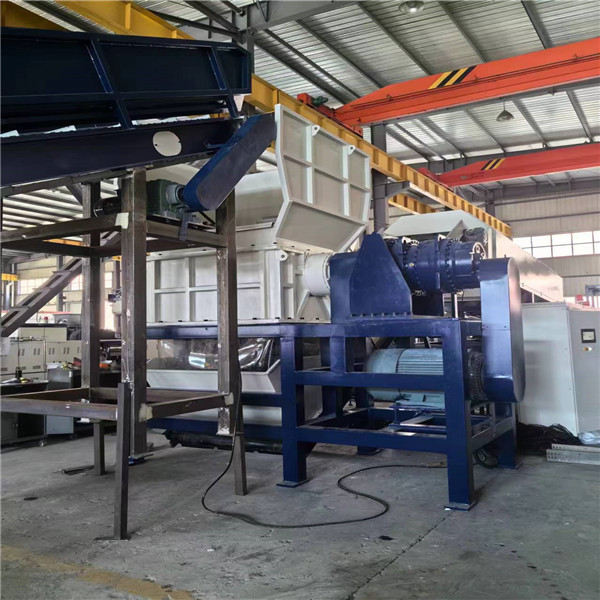

De-baling Unit
To do bale open
To reduce the washing burden with rough shredding film or bag into
big scrap
To protect crusher cutters from sand bearing
The shredding system adopts wear-resistance design for long service
life

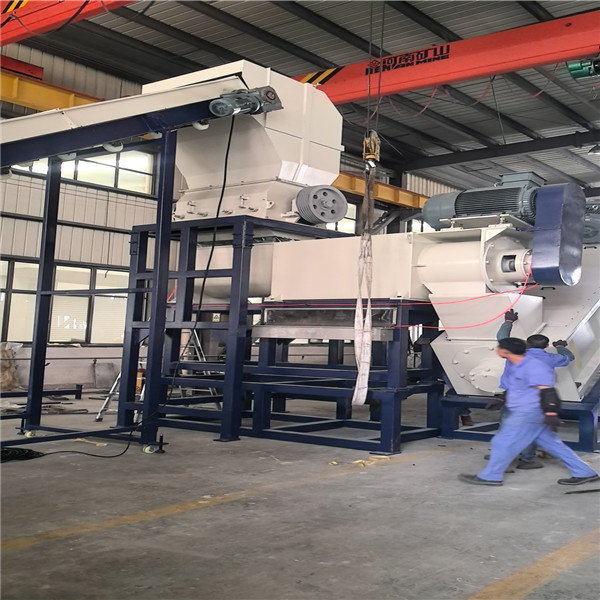

Crushing Unit
Crushing Plastic Granulator/crusher to further cut the long waste
scrap into small scrap.
Wet crusher have 2 effects.
On one hand, to wash crushed scrap with water, on the other hand,
water can decrease the temperature by crusher cutters(
bear-resistance).
Crusher can be equipped with operating plate
Easily operated with sharpen cutters

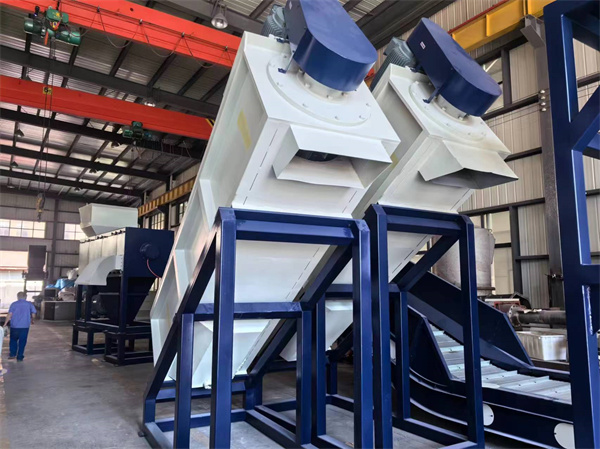

Friction washing part
through friction force between material, film or bag screp get
friction washing during rotating process
rotating speed speed:960rpm
inner mesh can filter impurity and waste again
Washing Unit
Wash and separate the materials by material gravity and water
gravity.
Water saving by using stainless steel chain, and air opening valve
Squeezing Unit
one huge screw embed in the squeezer. with screw rotating, material
will be push and compress.
at this time, the water go out from the filter. after that, with
the heat from waste material friction, material will be heated into
semi-melting.
after that, through the die/mould, material will be compressed with
high temperature, and output the rigid scrap.
This machine is less energy consumption and good drying
performance, moisture content of the output material can be
controlled between 3 % to 5%
Advantages:
Professional design team with 30 years experiences
Washing line process can be designed as customer need
Applying to various material
High efficiency and high performance
Save your labor and electrical cost
High processing capacity: 500-3500kg/hr
PLC integrated and separated control on each machine
Touch screen panel, easy operation, monitor and maintenance
Machine raw material: high-quality 304 stainless steel, hard and
bear resistance, to make sure the long using life
Ensure no second pollution to flakes
Excellent clean ability
