Brand Name : | PULIER OR PR |
Model Number : | PE(QX-1000) |
Certification : | CE |
Price : | Negotiable |
Payment Terms : | L/C or T/T |
Supply Ability : | 20 lines per year |
Delivery Time : | 60 to 80days |

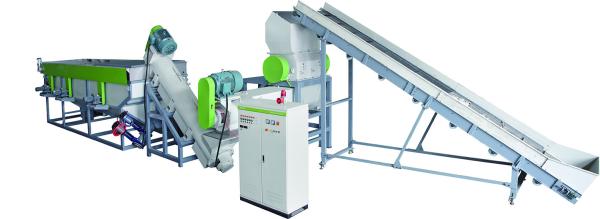

Automatic and High Performance Post-consumer PP PE Film Recycling Washing Machine
Workflow
Feeding: Put the waste plastic film into the feeding system.
Washing: Remove dirt and impurities through the washing machine.
Dehydration: Use a dehydrator to remove the residual moisture
during the washing process.
Drying: Further reduce the moisture content through the dryer.
Sorting and packaging: sorting and packaging of cleaned plastic
film for reprocessing.
Application areas
Plastic recycling: cleaned plastic film can be used for the
production of recycled plastic particles.
Environmental protection:
helps reduce plastic pollution and promote sustainable development.
Main components
Feeding system:
Used to feed waste plastic film into the washing line, usually
including conveyor belt and feeding device.
Crushing Unit
Crushing Plastic Granulator/crusher to further cut the long waste scrap into small scrap.
Wet crusher have 2 effects. On one hand, to wash crushed scrap with water, on the other hand, water can decrease the temperature by crusher cutters( bear-resistance).
Crusher can be equipped with operating plate
Easily operated with sharpen cutters
Washing machine:
Remove dirt and impurities from the surface of the film by water
flow, mechanical force and chemical cleaning agents.
Dryer:
Further dry the dehydrated film to ensure that its moisture content
is suitable for subsequent reprocessing.
one huge screw embed in the squeezer. with screw rotating, material will be push and compress.
at this time, the water go out from the filter. after that, with the heat from waste material friction, material will be heated into semi-melting.
after that, through the die/mould, material will be compressed with high temperature, and output the rigid scrap.
This machine is less energy consumption and good drying performance, moisture content of the output material can be controlled between 3 % to 5%
Sorting system:
Sort the washed film according to material type, color, etc.
Control system:
Through intelligent control systems such as PLC, realize automatic
management and monitoring of the entire washing line.
Considerations for choosing a washing line
Capacity: choose the appropriate capacity according to the needs of
the enterprise.
Cleaning effect: the cleaning efficiency and effect of the
equipment are the key.
Automation: high automation can reduce labor costs and improve
production efficiency.
Maintenance cost: consider the maintenance and operation cost of
the equipment.
The waste plastic film washing line plays an important role in
promoting plastic recycling and protecting the environment.
Technical Parameter
Model | PE(QX-500) | PE(QX-800) | PE(QX-1000) | PE(QX-1500) | PE(QX-2000) | PE(QX-3000) |
Capacity(kg/hr) | 500 | 800 | 1000 | 1500 | 2000 | 3000 |
Power cosnumption
Advantages:
Professional design team with 30 years experiences
Washing line process can be designed as customer need
Applying to various material
High efficiency and high performance
Save your labor and electrical cost
High processing capacity: 500-3500kg/hr
PLC integrated and separated control on each machine
Touch screen panel, easy operation, monitor and maintenance
Machine raw material: high-quality 304 stainless steel, hard and
bear resistance, to make sure the long using life
Ensure no second pollution to flakes
Excellent clean ability
![]() |
