HDPE bottles Cleaning Line for Environmentally Friendly Plastic
Waste Management
Application:
The HDPE bottles comes from detergent bottles, milk bottles, blue
jars and pipes, PP baskets and post-industrial bucket etc in loose
type or in bales. Our washing line is complete with the bale
opener, magnetic separator, prewasher, crusher, friction washing
and floating tank and hot washing, label separator, color sorter
and electric cabinet. It will help you recycle the material
automatically and high efficient.
We have designed the complete lines for customers recycling the
HDPE bottles in China and other countries. According to customers
requirement, we can add or remove some specific machines to reach
the target.

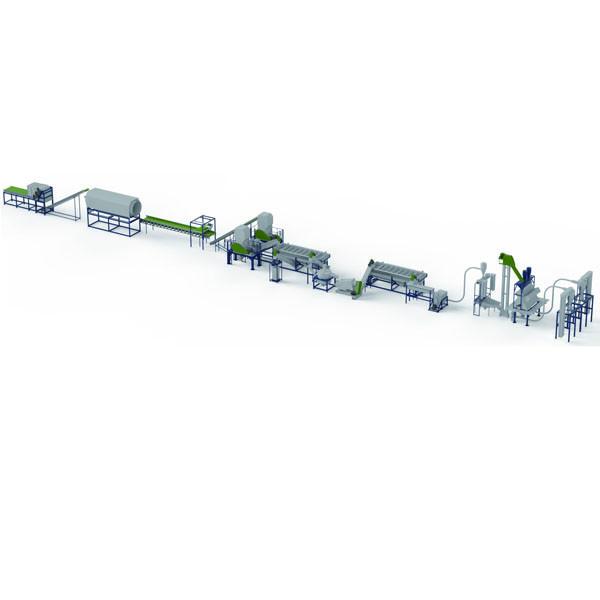

1000 kg/h Post consumer HDPE bottles washing line layout
1 Chain plate charger
2 Bale opener(4shaft)
3 Magnetic separator
4 Belt conveyer
5 Trommel separator
6 Belt conveyer
7 Prewasher
8 Water filter screen
9 Water tank
10 Belt conveyer
11 Manual sorting platform
12 Belt conveyer
13 PSJ1200 Crusher
14 Horizontal screw charger
15 Screw charger
16 Medium speed friction washing
17 Washing tank A
18 High speed friction washing
19 Screw charger
20 Hot washing
21 High speed friction washing
22 Water filtering system with alkali dosing device
23 Screw charger
24 Hot washing machine
25 Dewatering and wind transmission
26 Hot washing machine
27 High speed friction washing
28 Screw charger
29 Washing tank B
30 Medium speed friction washing
31 Dewatering machine
32 Hot pipe dryer
33 Label separator
34 Label separator
35 Electric cabinet
Features equipment:
Bale opener robust design
New design, with four shaft effectively open the PE bottles bales
Body plate thickness:30mm, made by carbon steel
anti-wear replaceable blades, two sides with blocking bolt
Trommel
To screen out the stones, dust, small metals, and loos the caps and
materials.
The trommel screens hole size are customized and we will suggest
the one that suits.
Middle speed Friction washing
To friction wash the tiny dirty stick on the flakes, such as the
labels etc.
Special design will make the flakes stay enough time to go through
the friction washing and remove the impurity.
High speed Friction washing
To friction wash the flakes and throw out the dirty
Rotation speed: 1200rpm,
The parts contact material is stainless steel or anti-rust
treatment,
Water tank water pump
Dewatering machine
It can remove water, tiny scraps and sand to reach moisture 1%. The
blades are welded with Anti-wear alloy.
Bottle flakes labels separator
Effectively remove the crushed labels mixed in the bottles flakes.
The washing line consumption:
| Items | Average consumption |
| Electricity(kwh) | 170 |
| Steam (kg) | 510 |
| Washing detergent (kg/ton) | 5 |
| Water | 2 |
PE washing line quality and specification
| Capacity(kg/h) | Power installed(kW) | Required space(M2) | Labour | Steam requirement(kg/h) | Water consumption(M3/h)
|
| 500 | 116 | 500 | 3-4 | 500 | 5 |
| 1000 | 490 | 730 | 5 | 510 | 2.1 |
| 2000 | 680 | 880 | 6 | 790 | 2.9 |
| 3000 | 890 | 1020 | 7 | 1010 | 3.8 |
