HDPE/PP/LDPE bottle Washing and Recycling Machine
when do plastic recycling industry, HDPE, PP, and LDPE bottle
materials are primarily sourced from urban and industrial
collection sites. These materials in vary size and composition,
differing not only from country to country but also within
internal.

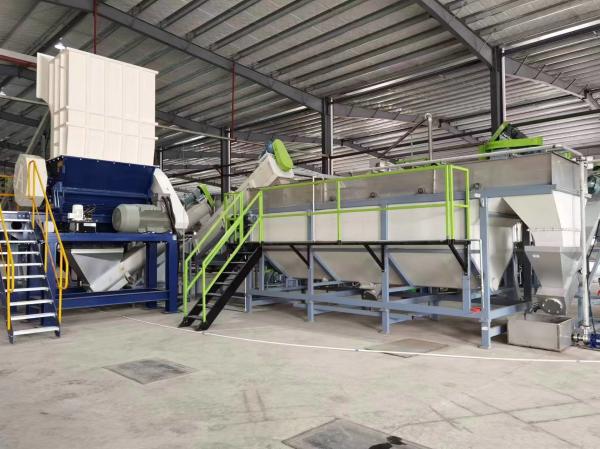

Our design of Recycle Washing Line is specifically for the
recycling of consumer plastic products. This system utilizes a
process of grading, crushing, and washing to produce clean,
reusable materials for further processing.
The plastic washing machine for HDPE/LDPE and PP bottle can
effectively handle a range of raw materials, including HDPE and PP
bottles, utensils, barrels, boxes, and rigid plastics commonly used
in daily life. With a processing capacity ranging from 1,000 kg/h
to 4,000 kg/h, this high-efficiency treatment technique
significantly enhances recycling effectiveness.
The processing flow as:
Waste HDPE/PP/LDPE bottles will feeding into shredder by belt
conveyor which equipped with heavy duty device. It can avoiding of
the overfeeding of the shredder.
Double shaft shredder, shredding the waste HDPE/PP/LDPE bottles
into pieces size as 60-80mm.
Shredded waste bottle flakes entering pre-washer system by belt
which equipped with metal detector to remove metal.
Pre-washer: this design mainly remove the most dusty, soil and sand
first. Conical pre-washer under the bottom to ensure that waste
sand or impurity or sediment can be discharge smoothly. After this
pre-washing, it can protect the crusher blades long-life and easy
washing in the next step.
Spiral loader +crusher+washing tank+ friction washer +centrifugal
drier.
We also can make and design special according to client’s request
based on different waste materials. Such as choose Trommel,
coloring sorting, optical sorting, etc.
