Double Stage Single Screw Extruder Plastic Recycling Granulating
Machine
The waste plastic film double-stage granulator is a device used to
reprocess waste plastic film into plastic pellets. Here are some
key information about the waste plastic film double-stage
granulator:
Working Flow:

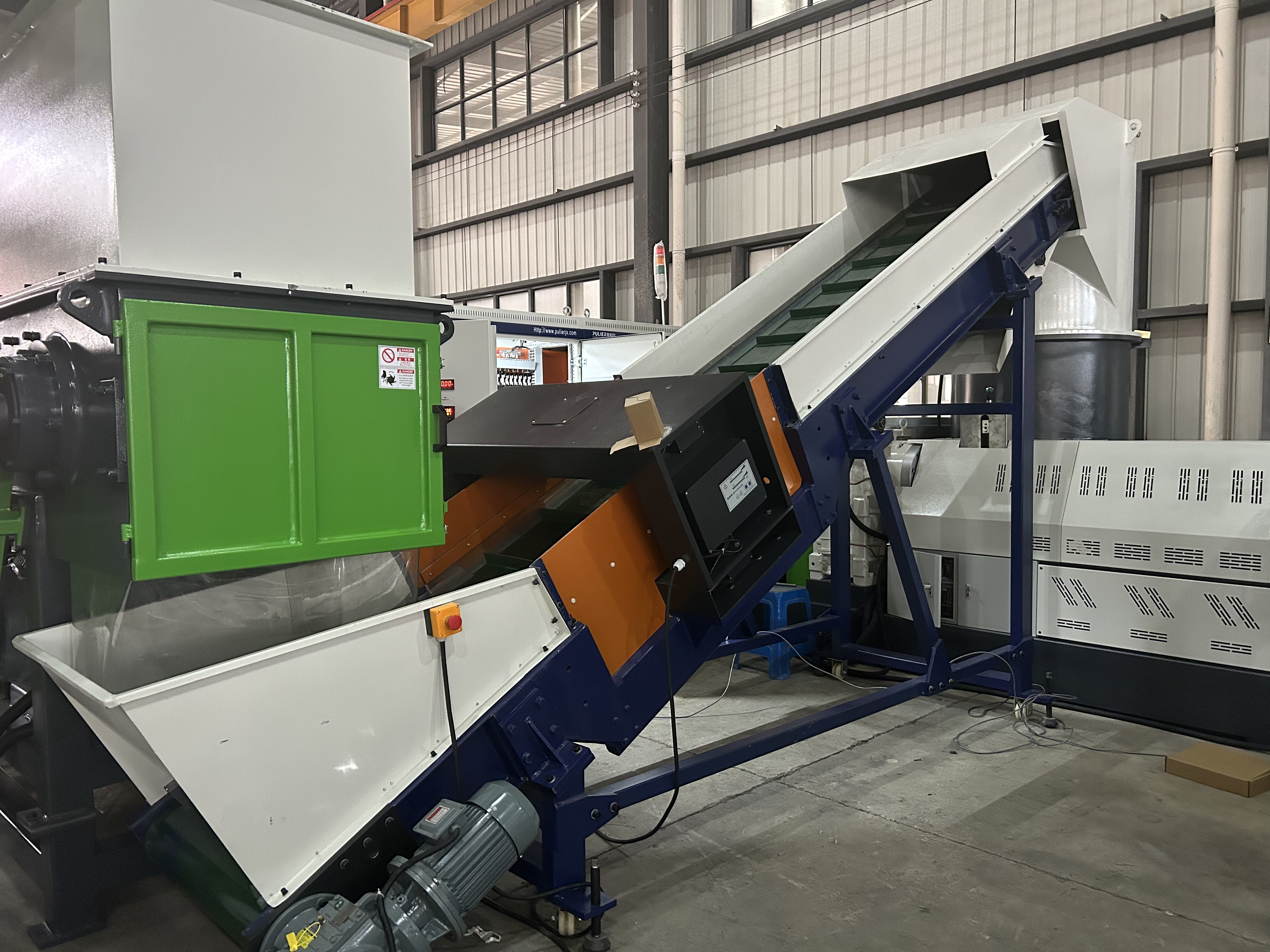

Belt Conveyor- Plastic Shredder-Belt Conveyor with Metal Detector-
Shredding Compactor -ML100/38 Single Screw Extruder -Hydraulic
Screen Changer- Vacuum system between Two Stage-SJ120/10 Single
Screw Extruder-Hydraulic Screen changer-Vertical Water Ring System
-Water tank-Centrifugal Dewatering System-Vibration System-Storage
Silo-Vertical Mixer
Main features
Dual-stage design
The double-stage granulator is usually divided into two extrusion
stages, which can process raw materials more effectively, improve
the melting quality of plastics and the uniformity of pellets.
High efficiency
The equipment can complete the melting and granulation process of
plastics in a shorter time, improving production efficiency.
Versatility
It can adapt to various types of plastic films, such as PE, PP,
etc., and has a wide range of applications.
Environmental protection
Reducing energy consumption and exhaust emissions during the
production process helps to achieve green production.
Application areas
Plastic recycling
Produce recycled plastic pellets for subsequent production use.
Industrial application
Manufacture of plastic products, packaging materials, etc.
Precautions for selecting a granulator
Capacity
Choose appropriate capacity specifications according to production
needs.
Material adaptability
Ensure that the equipment can handle various types of plastic
films.
Degree of automation
High automation can reduce labor costs and improve production
efficiency.
Maintenance and Service
Consider the difficulty of equipment maintenance and the quality of
after-sales service.
The waste plastic film two-stage granulator plays an important role
in plastic recycling and reuse, and is a key equipment to achieve
resource recycling and environmental protection goals.
Mian Techinical Parameter (high efficiency with power saving)
| Model | ML75/SJ85 | ML85/SJ90 | ML100/SJ120 | ML130/SJ140 | ML160/SJ180 | ML180/SJ200 | ML200/SJ200 |
| Screw diameter(mm) | 75/85 | 85/90 | 100/120 | 130/140 | 160/180 | 180/200 | 200/200 |
| L/D | 26 to 37 |
| Output(kg/h) | 100-150 | 200-300 | 300 to 400 | 500 | 600 to 800 | 800 to 1000 | 1200 to 1500 |
Why Choose Us
A.PR has professional manufacturer since 2006. we have our own
technical design department. Each extruder get designed according
to material feature.
B.Power saving with high output
C.Quality guaranty time is 12 months since the Bill of Lading date.
D.Delivery time: 40 work days to 60 days
E.Ship requested package
F.Machine installation is aboard available. It takes about 5 to 7
days with completing one time of installation. The assigned
engineer(s) manage the machine user training, machine operation and
commission
General Introduction
| Model name | ML |
| output | Plastic pellets/granules/resins/plastic raw material |
| Machine parts | Belt conveyor, cutter compactor, main extruder, pelletizing unit,
cooling system, silo, cabinet |
| Recycling material | PP/PE/LDPE/HDPE film, bag, fiber |
| Capacity range | 100kg/h to 1200kg/h |
| Feeding way | Conveyor, roll driving system |
| Screw diameter | 75mm to 200mm |
| Screw L/D | 26 to 33 |
| Screw raw material | 38CrMoAl or bimetallic |
| degassing | Natural degassing, vacuum degassing |
| Cutting type | Vertical pelletizing way, pull strip pelletizing |
| Cooling type | Water cool, air cool |
| voltage | Customized |
| Optional devices | Metal detector, water cooling system, feeding silo, vibration
system |
| Delivery time | 40 to 60 days |
| Warranty time | 13 months |
| Technical supports | Machine layout, installation layout, engineer oversea service |
| Certificate | CE/ SGS/ TUV/CO |
Machine Pictures
Recycling Machine Running Video
https://youtu.be/ENdrPUKQBjI?si=_ZS6GAGAgNsPz7I0
