Automatic Double Stage Single Screw Extruder for Washed PE film
Applications of Squeezed drying film granulator:
Applicable plastic materials: PE, HDPE, LDPE,PP, etc
Material shapes: rigid flakes, agglomerated film,
Note: depending on different material properties, various
downstream equipments are needed.
Plastic Pelletizing Line and Plastic Extruder
Features of film granulator:
Higher output, lower consumption, more automatic
Triple degassing for double stage extruder
Full automatic screen changer with much labor saving
Large capacity with low power consumption
20% more output than our first -generation products
15% less consumption than our first -generation products
2 labors operating the whole line
SJ series single stage pelletizing machine
| Model | SJ130/SJ140 | SJ160/SJ180 | SJ180/SJ200 | SJ200/SJ200 |
| Recycled Material | Squeezed PP,PE films,HDPE bottle flakes,rigid ABS,PS,PC |
| Capacity (kg/hr) | 500 | 800 | 1000 | 1500 |
| Main Motor(kW) | 132kW+37kW | 185kW+45kW | 200Kw+55kW | 315kW+75KW |
How it works
1.Belt conveyor uploading the material by timer
2.Feeder and extruder is controller by inverter,
3.Different L/D for different material
4.Nature degassing, vacuum degassing adopting for moisture
5. Non-mesh filter, single plate double position screen changer
with ensure large filtering area
5. horizontal waster ring pelletizing way, vertical water ring
pelletizing way, pull strip pelletizing way and underwater
pelletizing way can be choosed
6. VOC system and automatic package system also can be equipped
with customer need

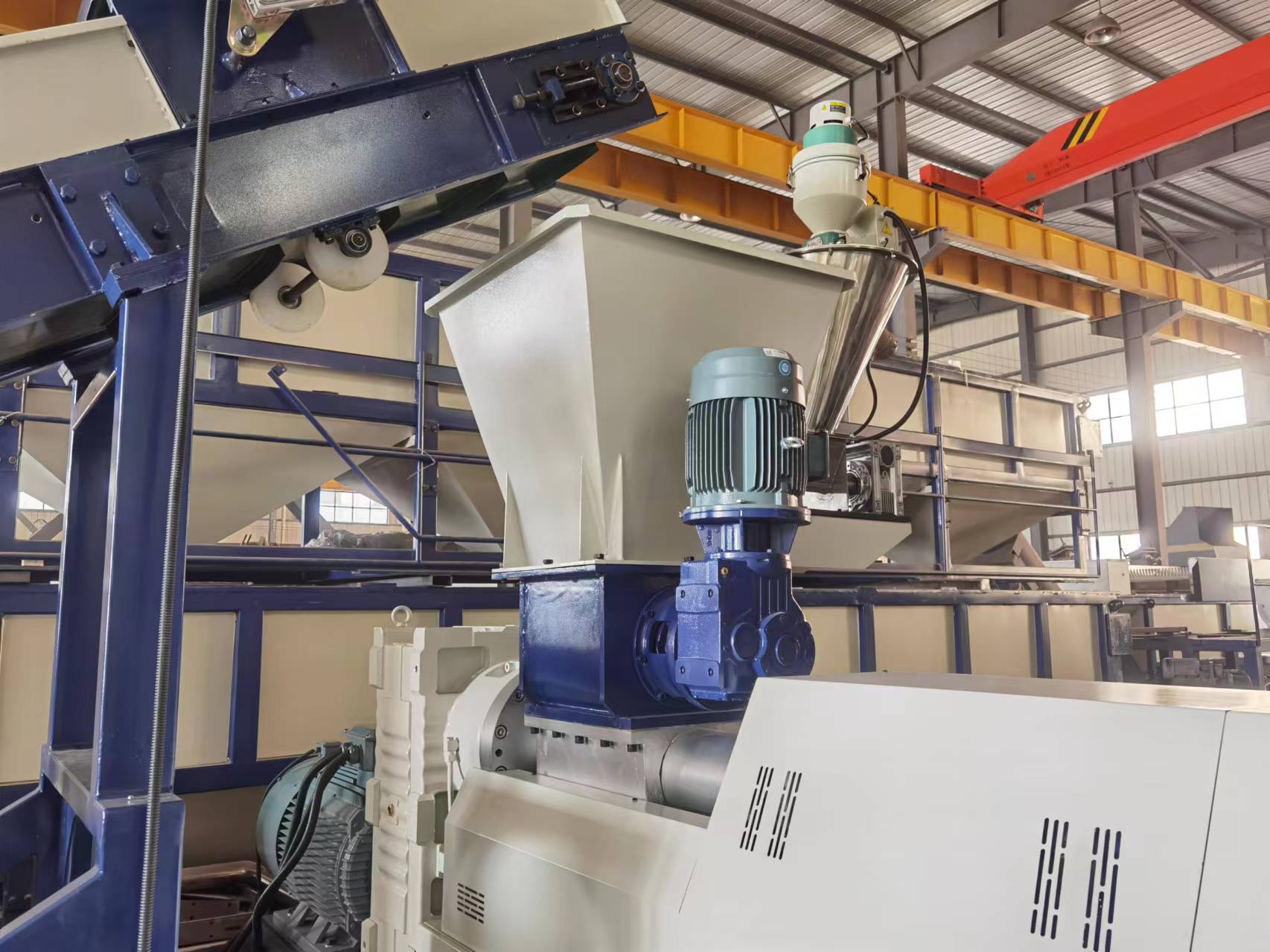

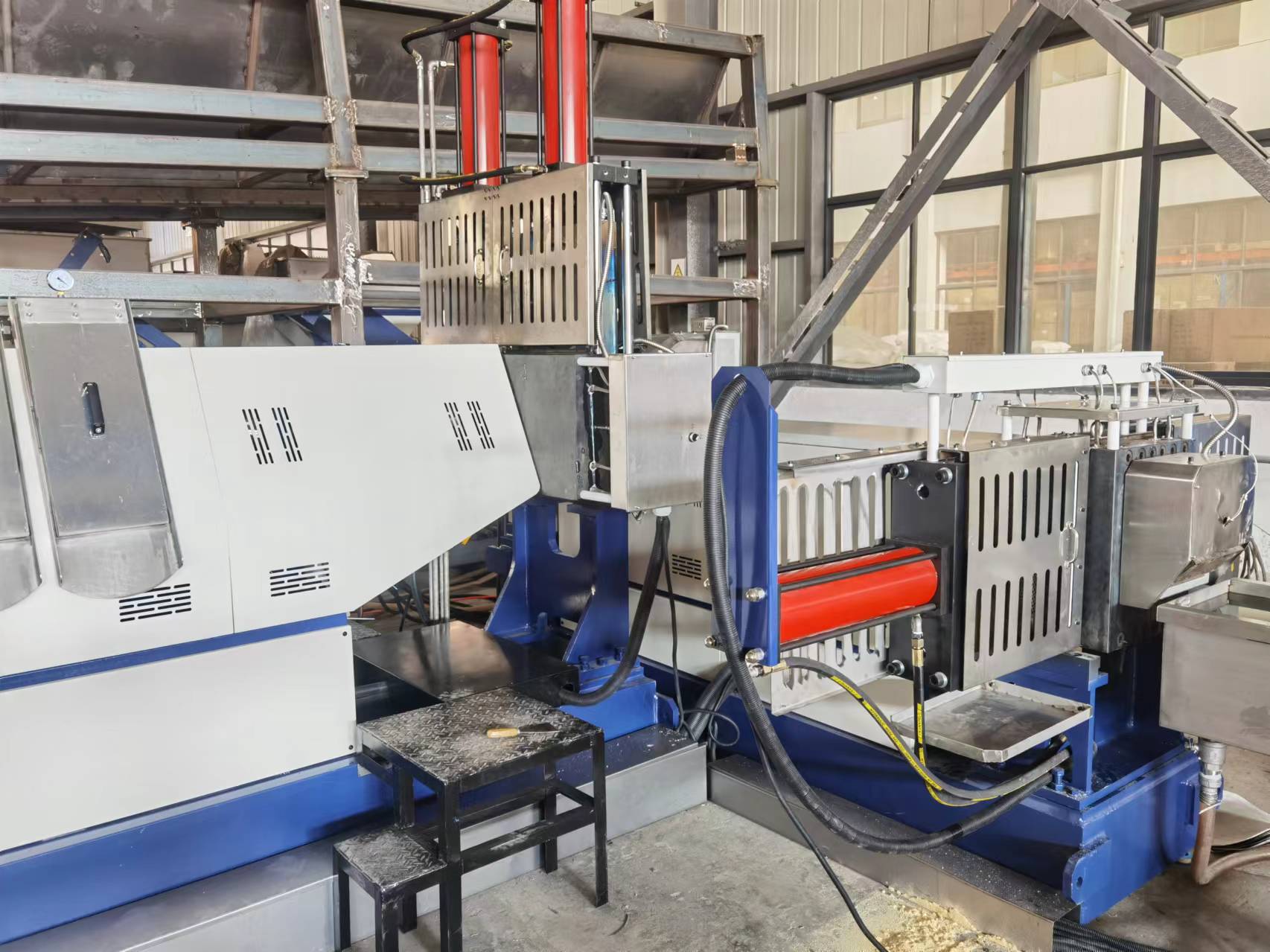

Machine Detail Pictures
| Model name | SJ |
| output | Plastic pellets/granules/resins/plastic raw material |
| Machine parts | Side force feeder, main extruder, hydraulic screen filter, second
stage extruder, hydraulic screen filter,pelletizing unit, cooling
system, silo, cabinet |
| Recycling material | washed PP/PE/LDPE/HDPE film, bag, fiber,flake |
| Capacity range | 100kg/h to 1200kg/h |
| Feeding way | Conveyor, roll driving system |
| Screw diameter | 75mm to 200mm |
| Screw L/D | 25 to 33 |
| Screw raw material | 38CrMoAl or bimetallic |
| degassing | Natural degassing, vacuum degassing |
| Cutting type | water ring pelletizing way, pull strip pelletizing |
| Cooling type | Water cool, air cool |
| voltage | Customized |
| Optional devices | Metal detector, water cooling system, feeding silo, vibration
system |
| Delivery time | 40 to 60 days |
| Warranty time | 13 months |
| Technical supports | Machine layout, installation layout, engineer oversea service |
| certificate | CE/ SGS/ TUV/ CO |
